Lama Home Wall - Free Standing
Adjustable climbing wall for home training. 3 different kickborad heights, free standing version.
| Category: | Structures |
|---|
Your personal climbing gym

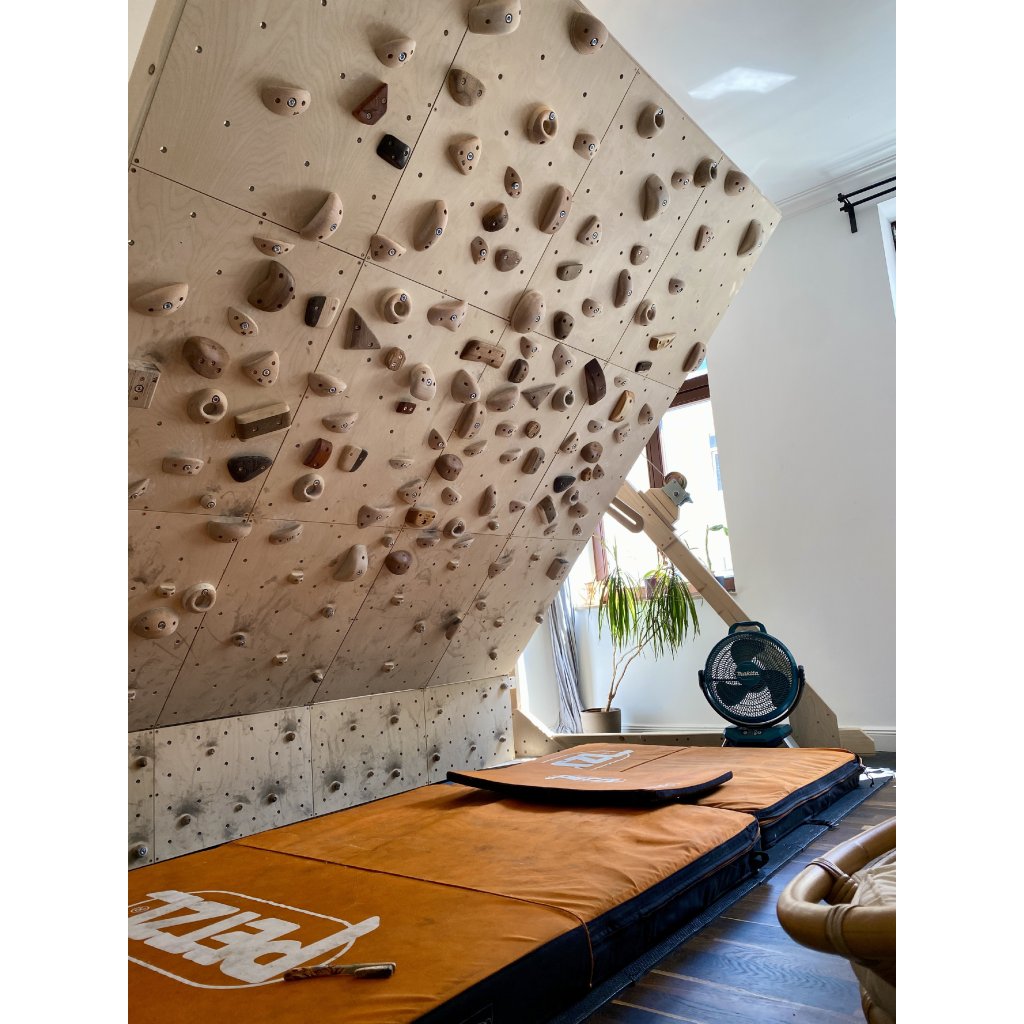

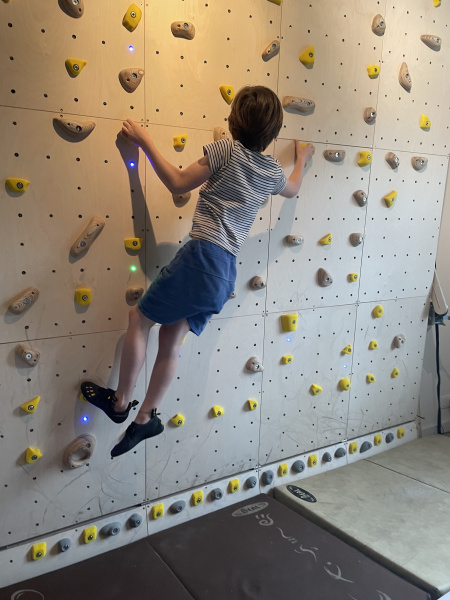

Lama Home Wall is an adjustable bouldering wall for your climbing training. This version is free standing version - does not require any drilling into the walls, it is ideal for rooms where walls are made of plasterboard or in rental housing where drilling into the wall is prohibited.

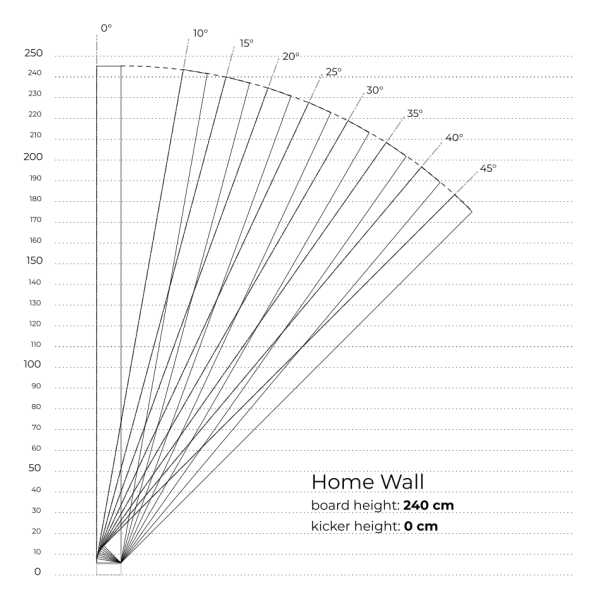

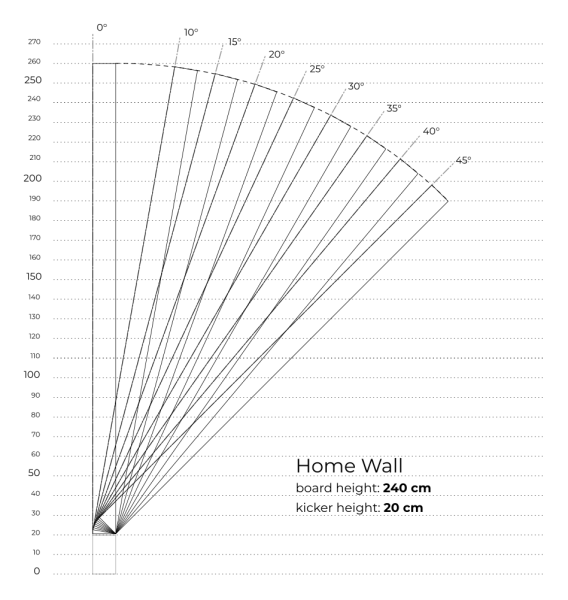

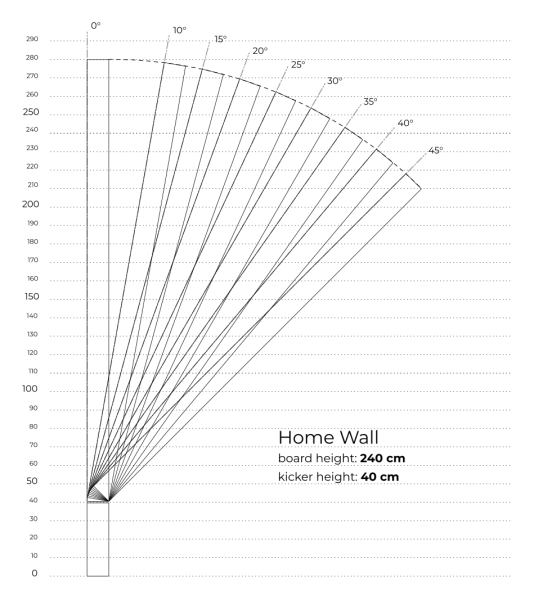

The main board dimensions are 2,4 x 2,4 meters (8x8 feet) - the size of a Moonboard Mini. Due to different ceiling hieghts in different rooms (a garage probably differs from a living room), you can choose from 3 kickboard sizes (the lower vertical board made just for footholds). No kickboard (lowest version with just the base plate), half kickboard (20 cm high) or a full kickboard (40 cm high). See what suits you the best according to the dimensions chart below.
| kickboard | total width | max. height (10°) | max. depth (45°) |
| 0 cm | 360 cm | 247 cm | 168 cm |
| 20 cm | 360 cm | 261 cm | 183 cm |
| 40 cm | 360 cm | 281 cm | 183 cm |
Kick it!
It is possible to tilt the wall 10 - 45° (version without kickboard only 10 - 40°).
- 10-15° is ideal for aerobic endurance training - endless laps on positive holds, important part of a base climbing fitness
- 25-30° for more technical boulders or power-endurance training - mid-length laps on more demanding holds
- 40-45° is a great angle for short powerful boulders - perfect for building higher finger strength

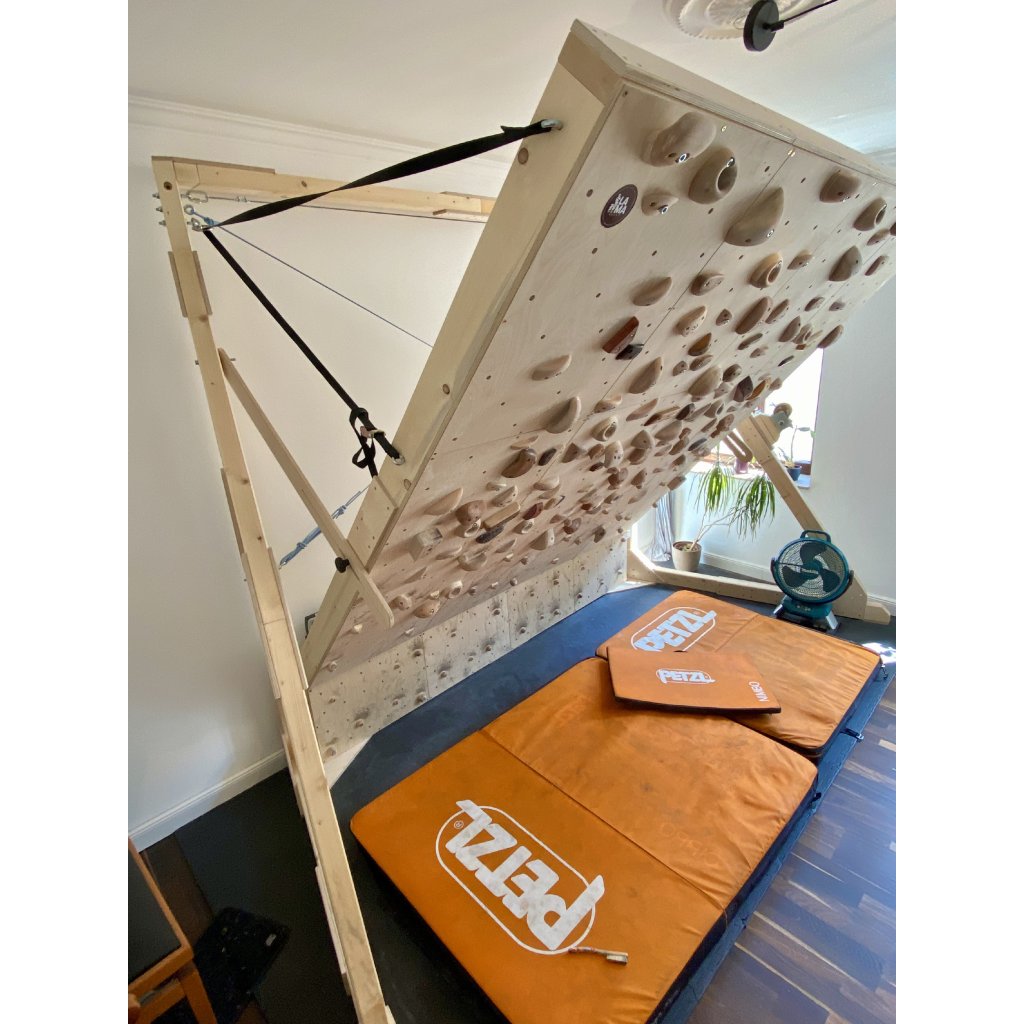

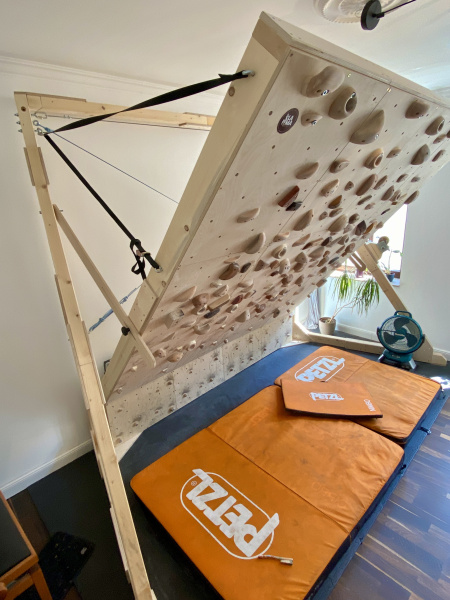

The wall angle is adjusted by a hand winch, placed on the left or right side of the board (whatever side suits you the best). The wall is fixed in place (apart from the steel winch cable) also with a securing strap on each side and 2 braces with a slot and screw (the slot helps to adjust the wall to an exact angle just by eye - no need to measure anything).

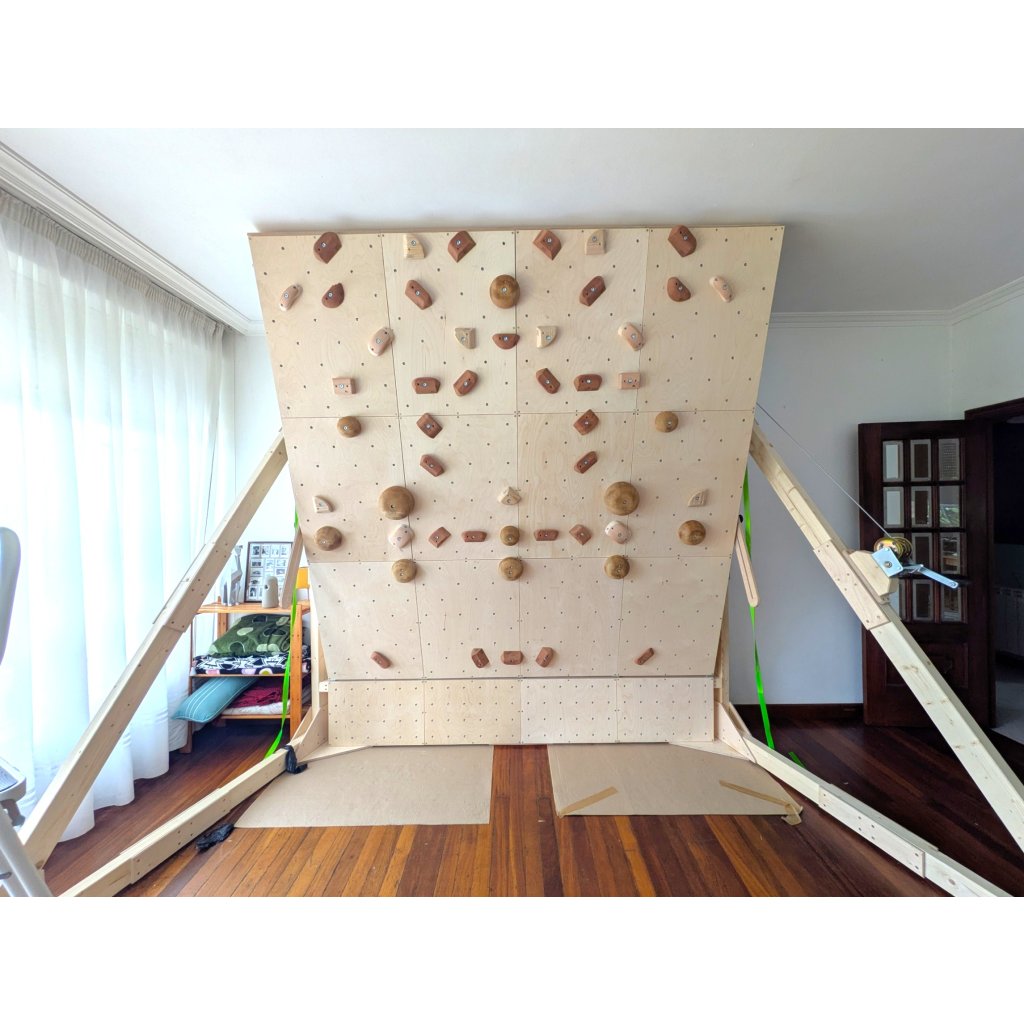

Place it anywhere, without drilling into the walls!
The Home Wall system is modular - made by smaller parts, which brings at least 2 main advantages - the product can be shipped all over the world on a pallet (and you can easily transport it anywhere in your house - either the basement or the attic - fitting even the smallest door). All the parts are 120 cm long at most.
Second, all the parts can be combined together to create smaller or bigger walls (in case you move to a bigger flat in the future and you want to expand your climbing wall, you don't have to buy everything again).
Endless training possibilities

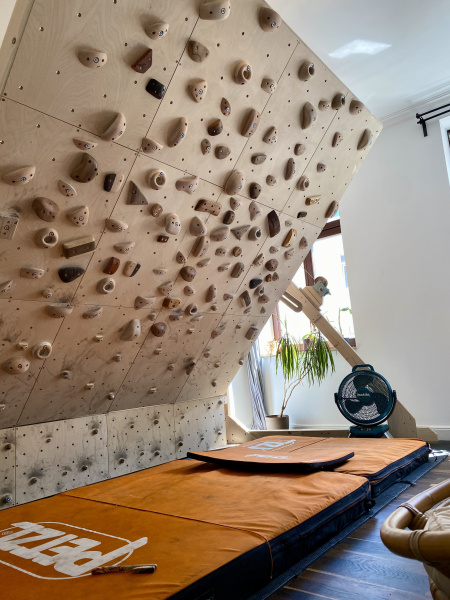

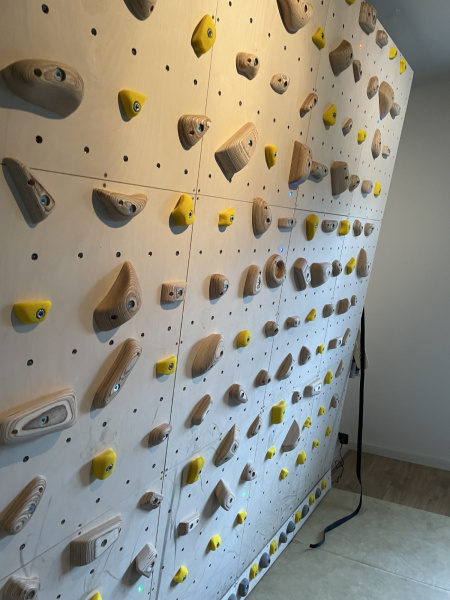

The bolt holes are Moonboard Mini compatible - spaced in a 20 cm grid (20 x 20 cm square) - so you can use Ben's holds with an app if you have them ;) Lama Home Wall has double the amount of bolt holes though - the hole rows are 10 cm above each other and every second row is 10 cm offset. Maximum hold density is 50 pcs / m2. We recommend to use at least 20 - 25 holds / m2 to utilize the board's potential.
The Home Wall is delivered including all fasteners and assembly instructions. The only extra tools you need are: a screw driver (with Torx TX20 bit), 17 mm wrench and 8 mm allen key (plus a bit of skilfulness :)).
Lama Home Wall in made only for indoor use ! If you want to use the wall outside, you have to build a roof above it. Consult the construction with your carpenter :) (or contact us at our e-mail and we will figure something out).
Transportation - the transport cost is calculated individually but we can ship (almost) anywhere in the world. The whole Home Wall weighs about 200 - 250 kg (depending on the version) and it fits on standard EU pallet 120x80 cm. Shipping to most of Europe is around €100-€200.
