Lama Home Wall is a adjustable climbing wall for your home training. Compact, versatile, affordable.
Lama Home Wall
Your personal
climbing wall.
A fully adjustable bouldering wall for your basement, garage, or training room. Engineered for serious training. Compact enough for real homes. Built to last a career.
Training that fits
your life. And your ceiling.
Adjustable angle
10° to 45° in minutes. Train endurance, technique, and power on one wall.
Two mounting options
Wall-mounted for solid masonry. Fully freestanding for rental apartments and drywall spaces.
Made-to-measure
10 board sizes, 3 kickboard heights. Configure the exact wall that fits your space.
3-point safety system
Winch, Dyneema safety straps, and locking struts. The wall does not move unless you want it to.
Modular & expandable
Ships on a standard pallet. Max. component length 120 cm. Move it, expand it, take it with you.
A gym-grade wall.
For your home.
Lama Home Wall is an adjustable indoor bouldering wall built for climbers who take training seriously. It installs in basements, garages, and training rooms — in two versions: wall-mounted or fully freestanding.
The wall angle adjusts between 10° and 45°, covering every training zone from aerobic endurance laps to short power boulders. The entire system is modular — individual components max out at 120 cm, making it easy to transport, handle, and assemble without a construction crew.
Choose from 10 board sizes, 3 kickboard heights, and 4 hole patterns — including native support for MoonBoard, Kilter Board, and Tension Board LED systems.
What makes it
different.
Adjustable angle
10° to 45° (or 10°–40° without kickboard). Change angle in minutes using the winch — no tools needed. Lock it with a look: the strut setting is visible at a glance.
Robust support construction
Heavy-gauge steel frame, bolted connections throughout. No flex, no creak. Engineered for one user at up to 200 kg total load.
Dense hold pattern
Up to 50 holds per m². T-nuts pre-installed for M10 bolts (except Tension Board pattern). Universal compatibility with standard climbing holds.
Compact footprint
Available from 6×8′ (180×240 cm). Fits in a typical basement or garage. Support structure adds only 23 cm to wall width on the wall-mounted version.
LED system ready
Choose the matching hole pattern for MoonBoard, Kilter Board, or Tension Board during configuration. LED system purchased separately.
Designed by climbers
Every dimension, every detail — thought through by people who actually use the thing. No compromises to save manufacturing cost.
Two versions.
One wall.
Option 01
Wall-Mounted
The load-bearing frame anchors directly into a solid brick or concrete wall. Hardware included — standard anchors and screws, or threaded rods glued in (both options available). Drywall is not suitable for this version.
Option 02
Freestanding
No drilling required. The frame stands completely independently — ideal for drywall spaces, rental apartments, or any situation where wall anchoring isn't possible. Can be relocated if you move.
Any angle.
Any session.
The wall adjusts between 10° and 45° (10°–40° without kickboard). Each angle range opens up a different training zone — you can switch between them in a single session.
10–15°
Aerobic endurance. Long laps on positive holds. Essential base training for every climbing level.
25–30°
Strength endurance and technical boulders. Medium-length laps on more demanding holds.
40–45°
Short power boulders. Maximum finger and body strength. Footwork under real overhanging conditions.
3-point safety system The wall holds rock solid at any angle — three independent mechanisms, working together.
01
Winch
Manual or electric. Mounted left or right. Sets the wall angle and provides controlled adjustment force.
02
Dyneema Safety Straps
One on each side. Prevent the main board from moving toward or away from the wall under any load or circumstance.
03
Locking Struts
Slot-and-bolt struts lock the angle in place. Visible setting — no measuring needed. Rock solid at every position.

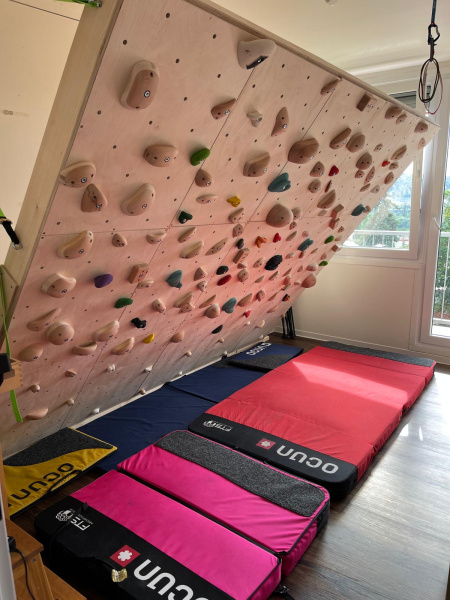

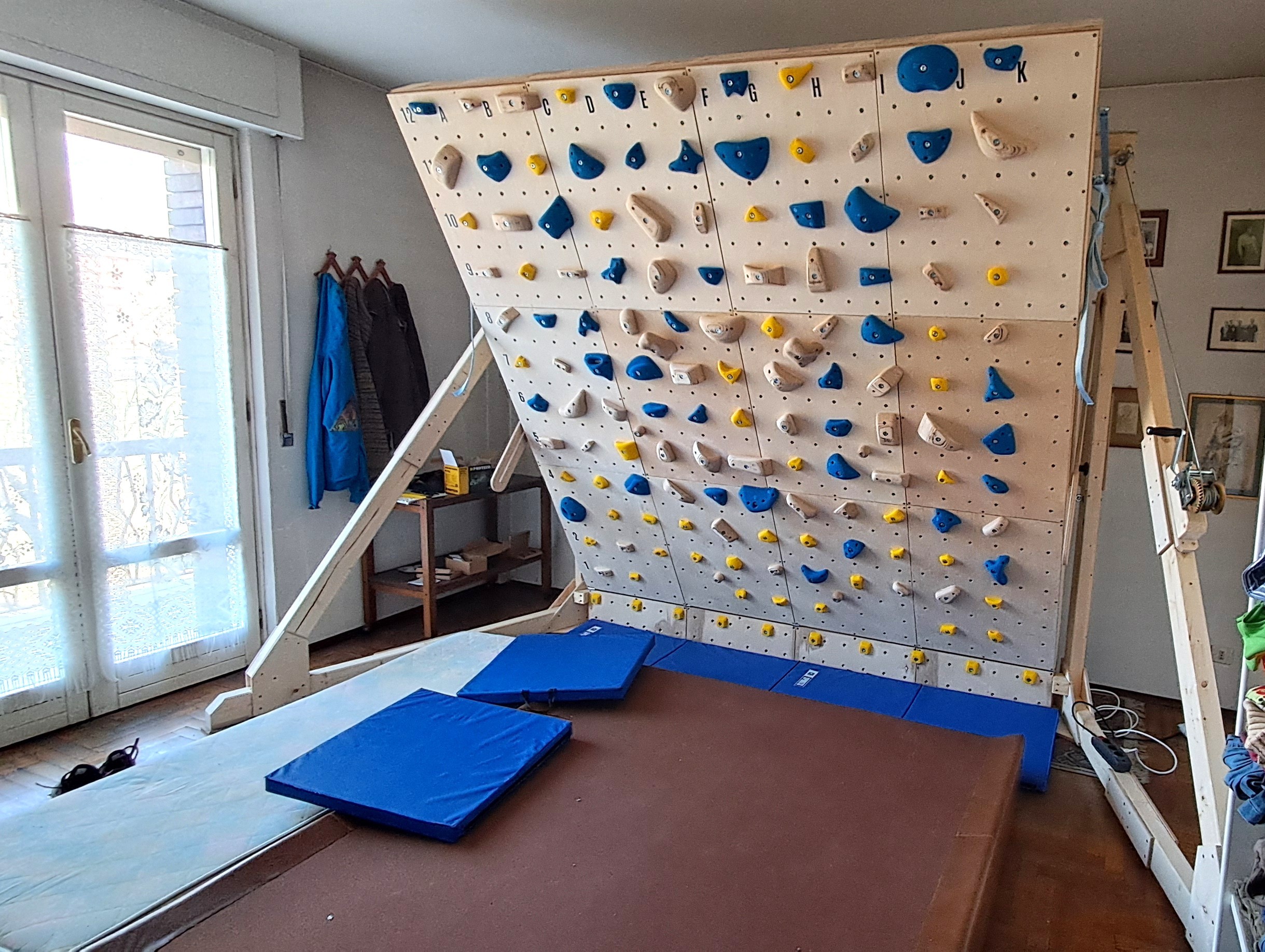

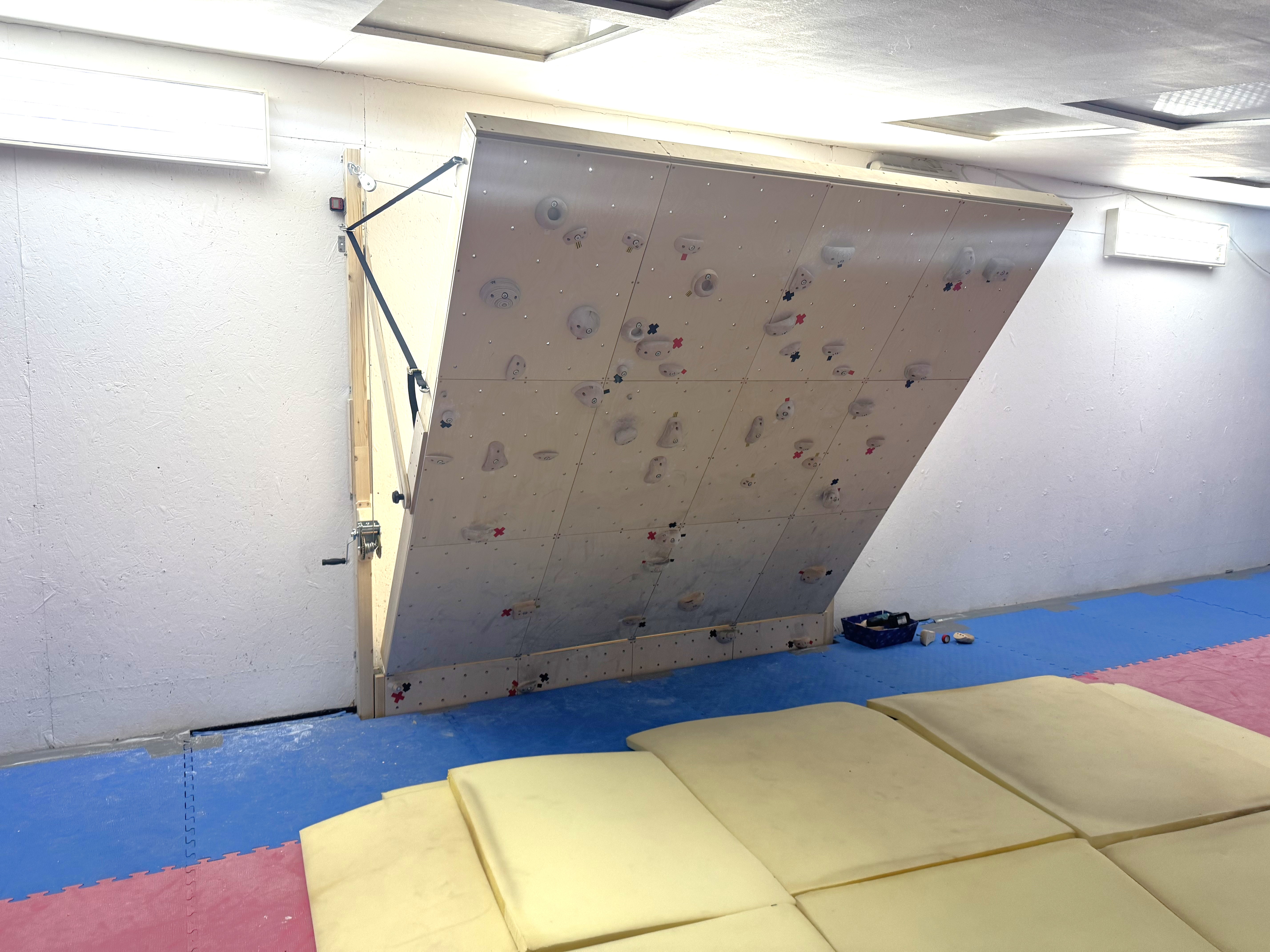

Customer installation
Home bouldering wall
Pick the wall
that fits.
We manufacture walls in 10 main board sizes — from 6×8′ (180×240 cm) to 12×12′ (360×360 cm). We work in centimetre dimensions; foot measurements are rounded equivalents.
Main Board Sizes
Exact dimensions in cm; foot values are approximate.
| Listed size (W × H) | Exact (feet) | Exact (cm) |
|---|---|---|
| 6′ × 8′ | 5.90′ × 7.87′ | 180 × 240 |
| 8′ × 8′ | 7.87′ × 7.87′ | 240 × 240 |
| 8′ × 10′ | 7.87′ × 10.49′ | 240 × 320 |
| 8′ × 12′ | 7.87′ × 11.81′ | 240 × 360 |
| 10′ × 8′ | 9.84′ × 7.87′ | 300 × 240 |
| 10′ × 10′ | 9.84′ × 10.49′ | 300 × 320 |
| 10′ × 12′ | 9.84′ × 11.81′ | 300 × 360 |
| 12′ × 8′ | 11.81′ × 7.87′ | 360 × 240 |
| 12′ × 10′ | 11.81′ × 9.84′ | 360 × 320 |
| 12′ × 12′ | 11.81′ × 11.81′ | 360 × 360 |
Kickboard Height
The kickboard is the lower vertical panel for footholds. Choose one of three heights. If your ceiling allows it, we recommend at least the 20 cm option — it makes a significant difference in versatility.
0 cm
No kickboard. Lowest possible wall height. Best for very low ceilings.
20 cm
Half kickboard. Adds significant foothold space. Recommended if conditions allow. Ideal for endurance-focused training.
40 cm
Full kickboard. Maximum sit-start comfort. Best for overhangs 35° and steeper. Easiest crash pad placement.
Minimum Ceiling Height (cm) — by wall height and kickboard
| Wall height → | 8′ (240 cm) | 10′ (320 cm) | 12′ (360 cm) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Kickboard → | 0 cm | +20 cm | +40 cm | 0 cm | +20 cm | +40 cm | 0 cm | +20 cm | +40 cm |
| Frame height | 244 | 240 | 240 | 324 | 320 | 320 | 364 | 360 | 360 |
| 10° | 247 | 262 | 282 | 326 | 341 | 361 | 365 | 380 | 400 |
| 15° | 244 | 258 | 279 | 321 | 336 | 356 | 360 | 375 | 395 |
| 20° | 238 | 253 | 273 | 313 | 328 | 348 | 351 | 366 | 386 |
| 25° | 232 | 246 | 266 | 304 | 319 | 339 | 340 | 355 | 375 |
| 30° | 222 | 237 | 257 | 292 | 307 | 327 | 326 | 341 | 361 |
| 35° | 212 | 227 | 247 | 277 | 293 | 312 | 310 | 325 | 345 |
| 40° | 200 | 215 | 235 | 261 | 276 | 296 | 292 | 307 | 327 |
| 45° | — | 202 | 222 | — | 258 | 278 | — | 286 | 306 |
All values in centimetres. "Frame height" row shows base height of support construction at 0°. — = combination not available.
Total Width Including Support Structure
Wall-Mounted
| Wall width | Total width* |
|---|---|
| 6′ (180 cm) | 203 cm |
| 8′ (240 cm) | 263 cm |
| 10′ (300 cm) | 323 cm |
| 12′ (360 cm) | 383 cm |
* Add 15 cm for the winch handle.
Freestanding (strana ke zdi | přední strana)
| Wall width | 8′ height | 10′ height | 12′ height |
|---|---|---|---|
| 6′ | 201 | 300 | — | — |
| 8′ | 260 | 360 | 260 | 409 | 260 | 409 |
| 10′ | 320 | 420 | 320 | 469 | 320 | 469 |
| 12′ | 380 | 480 | 380 | 530 | 380 | 530 |
Format: wall-side width | front width between open support posts.
Choose your
hole pattern.
Select the pattern during wall configuration. All patterns use a 20 × 20 cm base grid and support up to 50 holds/m². Your choice depends on whether you plan to install an LED system — and which one.
LAMA pattern 50 holds/m²
Doubled 20 × 20 cm grid, 48 holes per panel. T-nuts for M10 bolts pre-installed. Universal layout with maximum hold density.
Choose this if you don't plan to install an LED system.
Tension Board pattern 50 holds/m²
Doubled 20 × 20 cm grid, 48 holes per panel. No T-nuts — holes used directly for LED installation. Holds attached with screws.
Choose this for the Tension Board LED system. LED system not included.
Kilter Board pattern 50 holds/m²
Doubled 20 × 20 cm grid, 48 holes per panel. T-nuts in main holes. Two additional LED holes flanking each main hole.
Choose this for the Kilter Board LED system. LED system not included.
MoonBoard pattern 50 holds/m²
Single 20 × 20 cm grid, 24 holes per panel. T-nuts for M10 bolts. Additional LED holes below each T-nut hole.
Choose this for the MoonBoard LED system. LED system not included.
Modular.
From day one.
Every component of Home Wall ships as individual parts with a maximum length of 120 cm. This isn't just a logistics decision — it's a design philosophy.
01
Ships anywhere
Delivered on a standard Euro pallet, 120 × 80 × 50 cm. Can be carried up to the 10th floor in an elevator. Fits in a regular car if you want to pick it up in person.
02
Expandable later
Structural components can be freely combined and extended. Move to a bigger space? The wall grows with you — without buying everything again.
Built for real
training spaces.
Basement Wall
Low ceiling? No problem. The 8′ × 8′ configuration fits in rooms from 240 cm ceiling height, and the wall can be set to lower angles to match.
Garage Gym
Vyšší stropy otevírají plný rozsah 12′ a úhel 45°. Freestanding verze funguje i na nerovné podlaze nebo tam, kde se nechceš vrtat.
Dedicated Training Room
Configure your Kilter, MoonBoard, or Tension Board layout directly. Pair with the full 40 cm kickboard for maximum sit-start and crash pad flexibility.
Apartment
Freestanding verze nevyžaduje vrtání — žádné poškození zdí, žádné vysvětlování majiteli. Dodání na paletě, vejde se do výtahu a při stěhování ji vezmeš s sebou.
Hold Density
- Maximum holds: 50 pcs/m² (depending on pattern)
- Practical minimum: 20–25 holds/m² to make full use of the wall
- The lower section typically uses footholds only — another reason to choose at least the 20 cm kickboard
- Holds are not included with the wall. Contact us and we'll put together a custom hold package for you.
The numbers.
| Specification | Detail |
|---|---|
| Available sizes (W × H) | 6×8′ to 12×12′ — 10 configurations (180×240 cm to 360×360 cm) |
| Kickboard options | 0 cm / 20 cm / 40 cm |
| Adjustable angle | 10°–45° (with kickboard) / 10°–40° (without kickboard) |
| Angle adjustment mechanism | Manual or electric winch + Dyneema safety straps + locking struts (3-point system) |
| Mounting Options | Wall-Mounted (cihla / beton) nebo volně stojící |
| Max. total load | 200 kg |
| Intended use | One person at a time, indoor use only |
| Hold compatibility | Standard M10 bolt-on climbing holds (T-nuts pre-installed) |
| Max. holds density | Up to 50 pcs/m² |
| Hole patterns | LAMA / Tension Board / Kilter Board / MoonBoard |
| Max. component length | 120 cm (modular system) |
| Shipment weight | Approx. 170–350 kg (depending on configuration) |
| Pallet dimensions | Approx. 120 × 80 × 50 cm (standard Euro pallet) |
| Panel paint finish | Optional: grey anthracite, non-toxic water-based (suitable for children's toys) |
| Installation tools required | Cordless drill (ideally two), spirit level, tape measure — all included hardware |
| Crash pad / mat | Required, not included |
Everything you need.
Nothing you don't.
- Panels with pre-drilled holes and pre-installed T-nuts (except Tension Board pattern)
- Complete hardware kit
- Basic tools: Torx TX20, PZ20, size 17 wrench, 8 mm hex key
- Winch (ruční nebo elektrický) s ocelovým lanem
- Dyneema Safety Straps a zajišťovací vzpěry
- Wall mounting hardware — quality Fischer DuoPower anchors and bolts (wall-mounted version only)
- Spare T-nuts (for replacing any that strip during hold installation)
- Assembly manual as PDF — clear, IKEA-style illustrated instructions
For installation you need a cordless drill (ideally two). For wall-mounted: also a spirit level and tape measure.
Optional panel paint finish: We can apply two coats of grey anthracite, non-toxic water-based paint for an additional fee. The support structure is left untreated. Painting adds slight production time and improves scuff resistance — it does not affect the indoor-only designation.
We ship
almost anywhere.
Lama Home Wall ships by pallet freight to almost anywhere in the world. We've delivered to Spain, Belgium, the UK, France, Italy, the USA, Philippines, Dubai, and more.
- Shipment weight: approx. 170–350 kg depending on configuration
- Warehouse pickup available — the wall fits in a regular car with rear seats folded down
- Free shipping does not apply to Home Wall — shipping is calculated separately
Important Safety Notices
Use Lama Home Wall is intended for indoor use only. Outdoor installation requires a roof structure — we cannot advise on outdoor setups or accept warranty claims from outdoor use.
Safety Not intended for publicly accessible locations, playgrounds, or schools. This is not a play structure. Always use with an appropriate crash pad or landing surface (not included). One person at a time. Maximum total load: 200 kg.
Common questions,
straight answers.
I'm not sure if the wall fits in my room. Can you help?
Start with the dimensions table above. If you're still unsure, email us your room dimensions including ceiling height — a rough hand-drawn sketch showing doors, windows and layout works perfectly. We'll take a look and advise.
What's the minimum ceiling height I need?
It depends on wall height, kickboard, and angle. The full breakdown is in the ceiling height table above. As a starting point: an 8′ wall with 0 cm kickboard at 30° needs approximately 222 cm.
Which kickboard height do you recommend?
At least 20 cm, if your ceiling allows. With a kickboard you get a large foothold zone, easier crash pad placement, and the wall becomes significantly more versatile. You'll only lose the 10° angle option in very low-ceiling situations — a small trade-off.
Is the wall stable? Can it shift during climbing?
No. The three-point safety system — winch, Dyneema straps, and locking struts — holds the board completely fixed at the chosen angle. The strut setting is visible at a glance; no measuring required.
Can I use standard climbing holds?
Yes. The LAMA, Kilter Board, and MoonBoard patterns use standard M10 T-nuts. Any bolt-on climbing hold with an M10 bolt fits. The Tension Board pattern uses screw-on holds instead.
Is it compatible with MoonBoard / Kilter Board / Tension Board?
Yes — choose the matching hole pattern when configuring your wall. The LED systems are purchased separately and are not included with the wall.
How difficult is the installation?
The assembly uses a cordless drill and the included hardware. Instructions are IKEA-style illustrated PDFs. Most customers complete the installation without professional help. For the wall-mounted version you'll also need a spirit level and tape measure.
How is the wall-mounted version anchored?
Into solid brick or concrete using included Fischer DuoPower anchors and screws, or by gluing in threaded rods. Both options are available — let us know which suits your wall material and we'll send the right hardware.

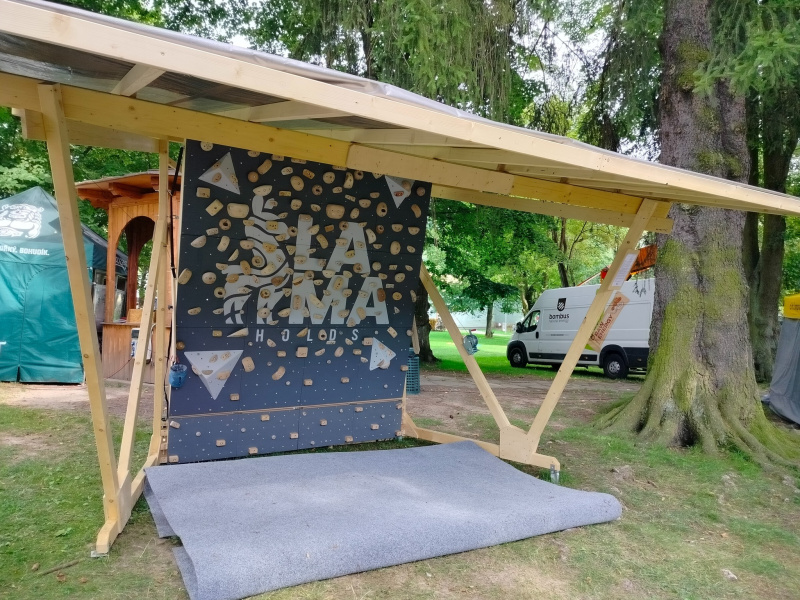

Can I use it outdoors?
We don't recommend it. If you insist, the wall must be covered by a roof structure. Ambient humidity will shorten the wall's life, and warranty claims from outdoor use cannot be accepted.
Is it suitable for beginners?
Yes. At lower angles (10–15°) the wall is accessible to beginners and great for building base fitness. As your level improves, you simply increase the angle. The wall grows with you.
Can the wall be customised?
Minor modifications — such as slightly shortening the support structure for a low ceiling — are possible. Changes to main board dimensions or major structural changes are not currently available.

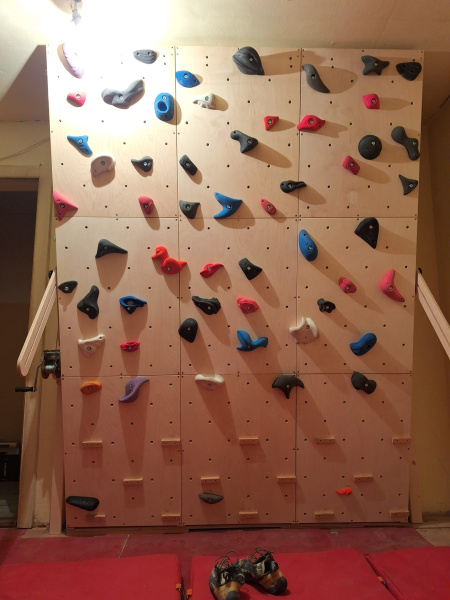

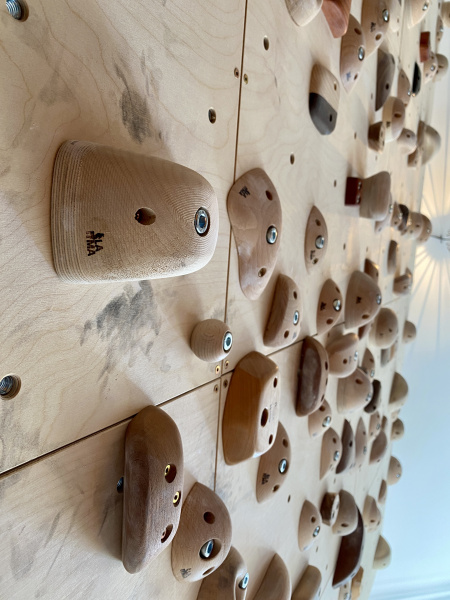

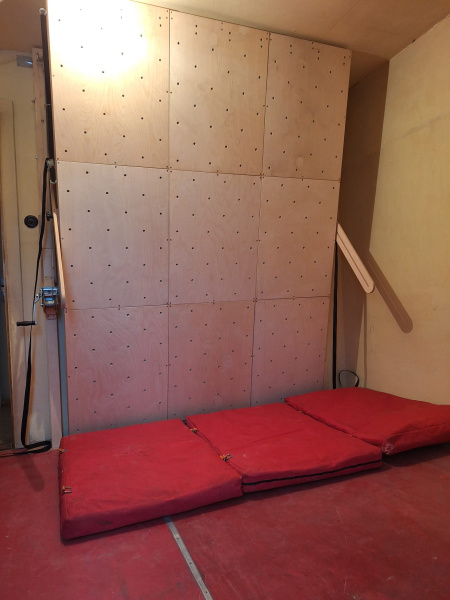

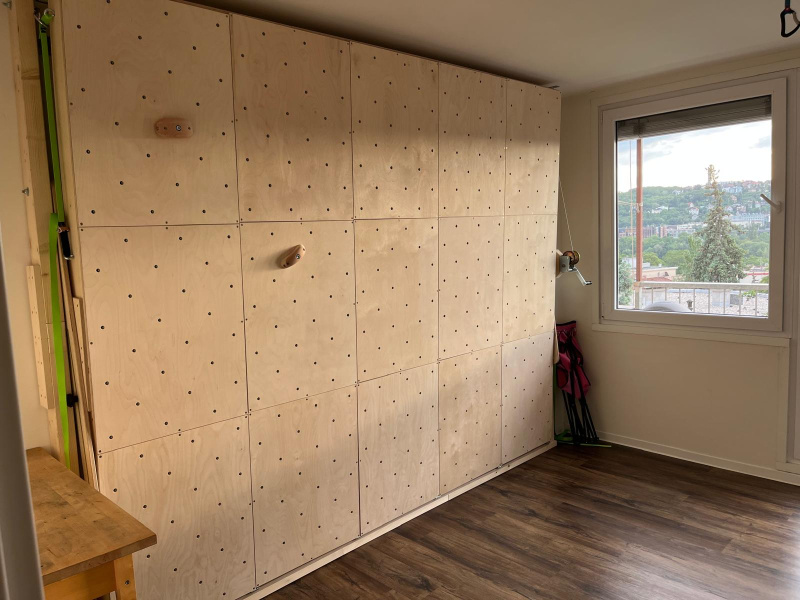

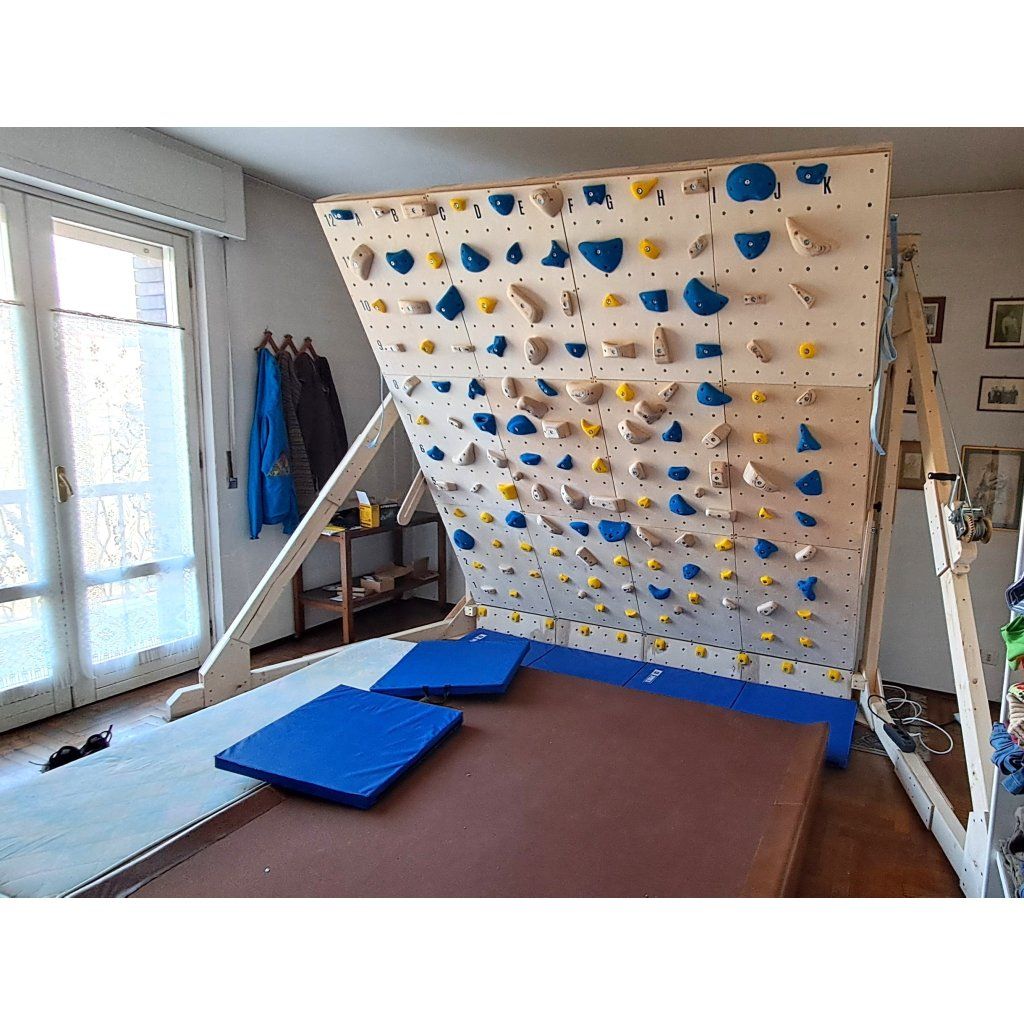

Built and climbing.
.jpg)
.jpg)
.jpg)
.jpg)
Stop planning.
Start climbing.
Configure your exact size, mounting type, kickboard height, and hole pattern. Every wall is built to order — no guesswork, no compromise.
